EIGRP Neighbor not on common subnet

سلام.

با اینکه IP Addressing بین R10 و R8، همچنین R11 و R8 به درستی Config شده و همه تحت AS_Number:70 هستن، با اینحال پیام "Neighbor not on common subnet" رو اعلام میکنن، می خواستم دلیل این مشکل و راه حلش و بدونم. ممنون.

سلام.
با اینکه IP Addressing بین R10 و R8، همچنین R11 و R8 به درستی Config شده و همه تحت AS_Number:70 هستن، با اینحال پیام Neighbor not on common subnet رو اعلام میکنن، می خواستم دلیل این مشکل و راه حلش و بدونم. ممنون.
||http://tosinso.com/files/get/ebb425b1-4cb2-4dcf-82d7-9609ddb995ee||
پرسیده شده در 1393/06/06 توسط

5 پاسخ

3

من تا حالا به این مشکل برنخوردم اما امروز مستندات سیسکو رو خوندم، سیسکو میگه وقتی این پیام صادر میشه که، یک اینترفیس روتر EIGRP HELLO PACKET دریافت کنه با Source آی پی ارسال کننده در یک زیر شبکه (Subnet) نباشه ...

حاله میگه عموما دلیلش ایناست :

**These are the general cause for this error message:
**
Misconfiguration of the interfaces or switch ports or cabling problem.Mismatch of
primary/secondary IP addresses on the neighbor interface.A switch/hub is leaking
multicast packets to other ports.If using a LAN switch, the vlans may have joined
routers together.Another router uses EIGRP advertising on the same subnet/vlan
as this router and is misconfigured with an incorrect AS number.*In order to
troubleshoot this issue, check these items:
*
Verify that the cable is connected correctly.
Double-check the interface configuration for misconfigured IP addresses on the
local and neighboring routers.
Verify that the primary address of the interface is in the same subnet as the
primary address of the neighbor router.
If the EIGRP neighbor connection is joined via a LAN hub, use separate hubs in
order to break up the broadcast domain for each logical LAN segment, or
configure no eigrp log-neighbor-warnings to eliminate the errors.

If there is a switch involved, check the switch configuration to make sure different
LAN segments are not configured to be in the same VLAN that share the same
broadcast domain.

در کانفیگ شما هر مشکلی هست از سمت روتر 8 باید باشه

پاسخ در 1393/06/07 توسط
0

توی کدوم روتر این پیامو میگیری ? یه running config و show cdp details ازش بگیر بذار اینجا

پاسخ در 1393/06/06 توسط
1

گفته های آقای فراهانی درسته من خودم یکبار که این پیغام رو گرفتم ip یکی از روترها رو اشتباه وارد کرده بودم

پاسخ در 1393/06/07 توسط
0

این پیغام رو روی کدوم روتر مبینی

زمانی که دو تا روتر لینک ارتباطی بینشون ip های متفاوتی داشته باشه این پیغام داده میشه

پاسخ در 1393/06/06 توسط
0

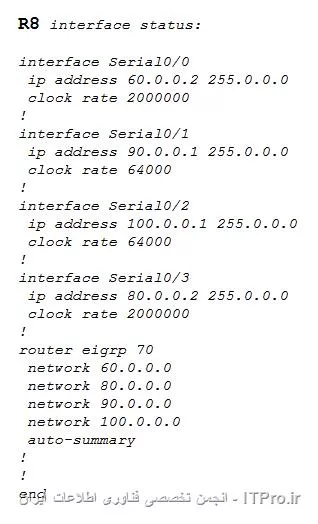

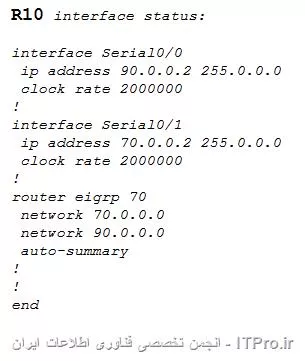

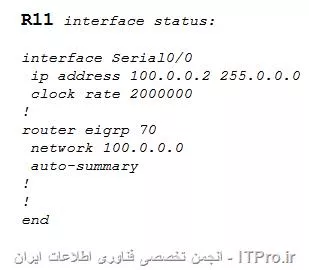

سلام مجدد به دوستان. بابت تآخیرم معذرت.

اینم از اطلاعاتی که فرمایش کرده بودید:

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||

سلام مجدد به دوستان. بابت تآخیرم معذرت.
اینم از اطلاعاتی که فرمایش کرده بودید:
||http://network.tosinso.com/files/get/806fa25f-d3fa-4477-b939-23276d860827||

||http://network.tosinso.com/files/get/57f5c7e8-f0aa-4b5d-8bff-ad2e0fe73abd||

||http://network.tosinso.com/files/get/ca67d231-c8d3-43fe-b399-0106b67c7def||

||http://network.tosinso.com/files/get/d069b81d-5b0a-4f2f-887e-1e48c1b16cbd||

||http://network.tosinso.com/files/get/dd54fdb8-282d-46ab-96d6-a51b4a0b0bba||

||http://network.tosinso.com/files/get/099d86bd-da35-4dc5-be72-1035ca301827||
پاسخ در 1393/06/07 توسط
