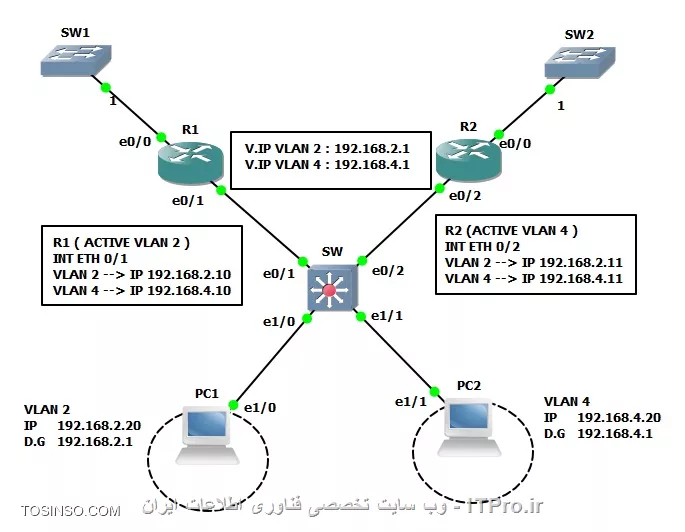

همین الان شروع کن!در سری سناریو های سیسکو امروز می خواهیم به آموزش راه اندازی HSRP بپردازیم. ابتدا سناریو را تشریح می کنیم و روش حل مسئله را باز می کنیم و با هم این سناریو را انجام می دهیم : سناریو زیر را طبق خواسته ها انجام دهید :
خب ما کلا" قراره تو سناریوهای این تیپی فقط کانفیگ کنیم و هیچ توضیح اضافه ای هم ندیم.
قدم به قدم بریم جلو
قسمت اول
R1# R1#!R1 R1#EN R1#CONF T Enter configuration commands, one per line. End with CNTL/Z. R1(config)#INT ETH 0/0 R1(config-if)#NO SHUT R1(config-if)# R1(config-if)#INT ETH 0/1 R1(config-if)#NO SHUT R1(config-if)# R1(config-if)#INT ETH 0/1.2 R1(config-subif)#ENCAPSULATION DOT1Q 2 R1(config-subif)#IP ADD 192.168.2.10 255.255.255.0 R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#ENCAPSULATION DOT1Q 4 R1(config-subif)#IP ADD 192.168.4.10 255.255.255.0 R1(config-subif)# R1(config-subif)#
R2# R2#EN R2#CONF T R2(config)#INT ETH 0/0 R2(config-if)#NO SHUT R2(config-if)#INT ETH 0/2.2 R2(config-subif)#ENCAPSULATION DOT1Q 2 R2(config-subif)#IP ADD 192.168.2.11 255.255.255.0 R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#ENCAPSULATION DOT1Q 4 R2(config-subif)#IP ADD 192.168.4.11 255.255.255.0
R1#SHOW IP INT BRief Interface IP-Address OK? Method Status Protocol Ethernet0/1.2 192.168.2.10 YES manual up up Ethernet0/1.4 192.168.4.10 YES manual up up R2#SHOW IP INT BRief Interface IP-Address OK? Method Status Protocol Ethernet0/2.2 192.168.2.11 YES manual up up Ethernet0/2.4 192.168.4.11 YES manual up up
PC1# PC1#!PC1 PC1#EN PC1#CONF T Enter configuration commands, one per line. End with CNTL/Z. PC1(config)# PC1(config)#INT ETH 1/0 PC1(config-if)#NO SHUT PC1(config-if)#IP ADD 192.168.2.20 255.255.255.0 PC1(config-if)# PC1(config-if)#IP ROUTE 0.0.0.0 0.0.0.0 192.168.2.1 PC1(config)#
PC2# PC2#!PC2 PC2#EN PC2#CONF T Enter configuration commands, one per line. End with CNTL/Z. PC2(config)# PC2(config)#INT ETH 1/1 PC2(config-if)#IP ADD 192.168.4.20 255.255.255.0 PC2(config-if)#NO SHUT PC2(config-if)# PC2(config-if)#IP ROUTE 0.0.0.0 0.0.0.0 192.168.4.1 PC2(config)#EXIT PC2# *Apr 16 06:27:03.176: %SYS-5-CONFIG_I: Configured from console by console PC2# *Apr 16 06:27:05.081: %LINK-3-UPDOWN: Interface Ethernet1/1, changed state to up *Apr 16 06:27:06.093: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet1/1, changed state to up PC2#
SW# SW#!SW SW#EN SW#CONF T SW(config)# SW(config)#INT ETH 0/1 SW(config-if)#SWITCHPORT TRUNK ENCAPSULATION DOT1Q SW(config-if)#SWITCHPORT MODE TRUNK SW(config-if)# SW(config-if)#INT ETH 0/2 SW(config-if)#SWITCHPORT TRUNK ENCAPSULATION DOT1Q SW(config-if)#SWITCHPORT MODE TRUNK SW(config-if)# SW(config-if)#VLAN 2 SW(config-vlan)#VLAN 4 SW(config-vlan)# SW(config-vlan)#INT ETH 1/0 SW(config-if)#SWITCHPORT SW(config-if)#SWITCHPORT MODE ACCESS SW(config-if)#SWITCHPORT ACCESS VLAN 2 SW(config-if)# SW(config-if)#INT ETH 1/1 SW(config-if)#SWITCHPORT SW(config-if)#SWITCHPORT MODE ACCESS SW(config-if)#SWITCHPORT ACCESS VLAN 4 SW(config-if)#
2.از ما خواسته شد که اولا HSRP کانفیگ کنیم و همچنین مبحث LOAD-BALANCING را هم داشته باشیم :
R1(config)# R1(config)#INT ETH 0/1.2 R1(config-subif)#STANDBY 2 IP 192.168.2.1 R1(config-subif)#STANDBY 2 PREEMPT R1(config-subif)#STANDBY 2 PRIORITY 200 R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#STANDBY 4 IP 192.168.4.1 R1(config-subif)#STANDBY 4 PREEMPT R1(config-subif)#STANDBY 4 PRIORITY 150 R1(config-subif)#
R2(config)# R2(config)#INT ETH 0/2.2 R2(config-subif)#STANDBY 2 IP 192.168.2.1 R2(config-subif)#STANDBY 2 PREEMPT R2(config-subif)#STANDBY 2 PRIORITY 150 R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#STANDBY 4 IP 192.168.4.1 R2(config-subif)#STANDBY 4 PRIORITY 200 R2(config-subif)#STANDBY 4 PREEMPT R2(config-subif)#
3.در ادامه از ما خواسته شد که : در هر 2 سمت TRACK بنویسید که در صورت از کار افتادن لینک پشت روتر طرف مقابل ، روتر دیگر بلافاصله ACTIVE شود.
R1(config)# R1(config)#TRACK 1 INT ETH 0/0 LINE-PR R1(config-track)# R1(config-track)#INT ETH 0/1.2 R1(config-subif)#STANDBY 2 TRACK 1 DECREMENT 100 R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#STANDBY 4 TRACK 1 DECREMENT 100 R1(config-subif)# R1(config-subif)#
R2(config)# R2(config)#TRACK 2 INT ETH 0/0 LINE-PR R2(config-track)# R2(config-track)#INT ETH 0/2.2 R2(config-subif)#STANDBY 2 TRACK 2 DECREMENT 100 R2(config-subif)# R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#STANDBY 4 TRACK 2 DECREMENT 100 R2(config-subif)#
حالا آنچه را که خواسته شد بررسی می کنیم :
R1# R1#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/1.2 2 200 P Active local 192.168.2.11 192.168.2.1 Et0/1.4 4 150 P Standby 192.168.4.11 local 192.168.4.1 R1# R1# R2# R2#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 150 P Standby 192.168.2.10 local 192.168.2.1 Et0/2.4 4 200 P Active local 192.168.4.10 192.168.4.1 R2# R2# R1(config)#INT ETH 0/0 R1(config-if)#SHUT R1(config-if)#EXIT R1(config)#EXIT R1# R1# R1#CONF T R1#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/1.2 2 100 P Standby 192.168.2.11 local 192.168.2.1 Et0/1.4 4 150 P Standby 192.168.4.11 local 192.168.4.1 R1# R2# R2#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 150 P Active local 192.168.2.10 192.168.2.1 Et0/2.4 4 200 P Active local 192.168.4.10 192.168.4.1 R2# R1(config)#INT ETH 0/0 R1(config-if)#NO SHUT R1(config-if)#EXIT R1(config)#EXIT R1# R1# R1#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/1.2 2 200 P Active local unknown 192.168.2.1 Et0/1.4 4 150 P Standby 192.168.4.11 local 192.168.4.1 R1# R2(config)#INT ETH 0/0 R2(config-if)#SHUTdown R2# R2#SHOW STANdby BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 50 P Standby 192.168.2.10 local 192.168.2.1 Et0/2.4 4 100 P Speak 192.168.4.10 unknown 192.168.4.1 R2# R2# R2# R2#SHOW STANdby BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 50 P Standby 192.168.2.10 local 192.168.2.1 Et0/2.4 4 100 P Standby 192.168.4.10 local 192.168.4.1 R2# R2(config)#INT ETH 0/0 R2(config-if)#NO SHUT R2(config-if)# R2(config-if)# R2# R2# R2#SHOW STANdby BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 150 P Standby 192.168.2.10 local 192.168.2.1 Et0/2.4 4 200 P Active local unknown 192.168.4.1 R2# R2# R1# R1#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/1.2 2 200 P Active local 192.168.2.11 192.168.2.1 Et0/1.4 4 150 P Standby 192.168.4.11 local 192.168.4.1 R1# R1#
در انتها از ما خواسته شد بین روتر ها احراز هویت انجام گیرد :
R1(config)#INT ETH 0/1.2 R1(config-subif)#STANDBY 2 AUTHENTICATION MD5 KEY-STRING CISCO R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#STANDBY 2 AUTHENTICATION MD5 KEY-STRING CISCO R1(config-subif)# R2(config)# R2(config)# R2(config)#INT ETH 0/2.2 R2(config-subif)#STANDBY 2 AUTHENTICATION MD5 KEY-STRING CISCO R2(config-subif)# R2(config-subif)# R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#STANDBY 2 AUTHENTICATION MD5 KEY-STRING CISCO R2(config-subif)# R1# R1#SHOW STANDBY BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/1.2 2 200 P Active local 192.168.2.11 192.168.2.1 Et0/1.4 4 150 P Standby 192.168.4.11 local 192.168.4.1 R1# R1# R2# R2# R2#SHOW STANdby BRief P indicates configured to preempt. | Interface Grp Pri P State Active Standby Virtual IP Et0/2.2 2 150 P Standby 192.168.2.10 local 192.168.2.1 Et0/2.4 4 200 P Active local 192.168.4.10 192.168.4.1 R2# R2#
