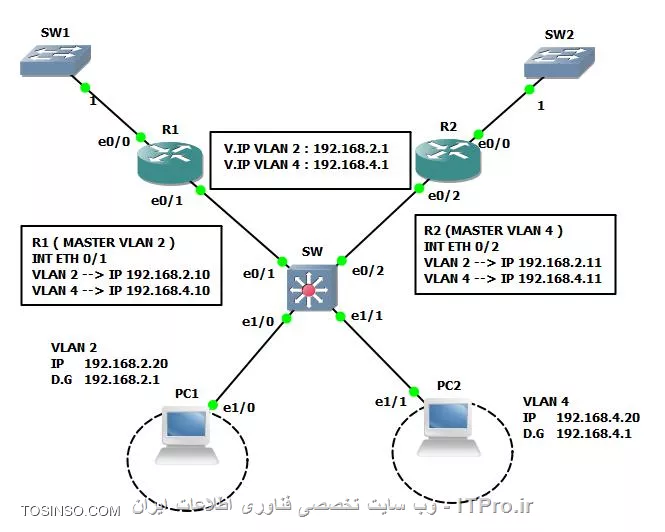

در سری سناریو های سیسکو امروز می خواهیم آموزش راه اندازی VRRP در روتر و سویچ سیسکو می پردازیم . ابتدا سناریو را تشریح می کنیم و روش حل مسئله را باز می کنیم و با هم این سناریو را انجام می دهیم : در ادامه سناریو قبل ، میخواهیم دقیقا" همان سناریو و همان خواسته ها را اینبار با پروتکل VRRP انجام دهیم :
R1(config)# R1(config)# R1(config)#INT ETH 0/0 R1(config-if)#NO SHUT R1(config-if)# R1(config-if)#TRACK 1 INT ETH 0/0 LINE-PR R1(config-track)#DELAY DOWN 5 R1(config-track)# R1(config-track)#INT ETH 0/1 R1(config-if)#NO SHUT R1(config-if)# R1(config-if)#INT ETH 0/1.2 R1(config-subif)#ENCAPSULATION DOT1Q 2 R1(config-subif)#IP ADD 192.168.2.10 255.255.255.0 R1(config-subif)# R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#ENCAPSULATION DOT1Q 4 R1(config-subif)#IP ADD 192.168.4.10 255.255.255.0 R1(config-subif)# R1(config-subif)#
R1#SHOW IP INT BRief Interface IP-Address OK? Method Status Protocol Ethernet0/1.2 192.168.2.10 YES manual up up Ethernet0/1.4 192.168.4.10 YES manual up up
R2# R2# R2#!R2 R2#EN R2#CONF T Enter configuration commands, one per line. End with CNTL/Z. R2(config)# R2(config)#INT ETH 0/0 R2(config-if)#NO SHUT R2(config-if)# R2(config-if)#TRACK 2 INT ETH 0/0 LINE-PR R2(config-track)#DELAY DOWN 5 R2(config-track)# R2(config-track)#INT ETH 0/2 R2(config-if)#NO SHUT R2(config-if)# R2(config-if)#INT ETH 0/2.2 R2(config-subif)#ENCAPSULATION DOT1Q 2 R2(config-subif)#IP ADD 192.168.2.11 255.255.255.0 R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#ENCAPSULATION DOT1Q 4 R2(config-subif)#IP ADD 192.168.4.11 255.255.255.0 R2(config-subif)# R2(config-subif)#
R2#SHOW IP INT BRief Interface IP-Address OK? Method Status Protocol Ethernet0/2.2 192.168.2.11 YES manual up up Ethernet0/2.4 192.168.4.11 YES manual up up
SW#SHOW RUN ! ! ! interface Ethernet0/1 switchport trunk encapsulation dot1q switchport mode trunk ! interface Ethernet0/2 switchport trunk encapsulation dot1q switchport mode trunk ! interface Ethernet0/3 ! interface Ethernet1/0 switchport access vlan 2 switchport mode access ! interface Ethernet1/1 switchport access vlan 4 switchport mode access
2.کانفیگ پروتکل VRRP با قابلیت LOAD-BALANCING
R1(config)# R1(config)#!VRRP R1(config)# R1(config)#INT ETH 0/1.2 R1(config-subif)#VRRP 2 IP 192.168.2.1 R1(config-subif)#VRRP 2 PRIORITY 200 R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#VRRP 4 IP 192.168.4.1 R1(config-subif)#VRRP 4 PRIORITY 150 R1(config-subif)#
R2(config)# R2(config)#!VRRP R2(config)# R2(config)#INT ETH 0/2.2 R2(config-subif)#VRRP 2 IP 192.168.2.1 R2(config-subif)#VRRP 2 PRIORITY 150 R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#VRRP 4 IP 192.168.4.1 R2(config-subif)#VRRP 4 PRIORITY 200 R2(config-subif)#
R1# R1# R1#SHOW VRRP BR R1#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/1.2 2 200 3218 Y Master 192.168.2.10 192.168.2.1 Et0/1.4 4 150 3414 Y Backup 192.168.4.11 192.168.4.1 R1# R2# R2# R2#SHOW VRRP BR R2#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/2.2 2 150 3414 Y Backup 192.168.2.10 192.168.2.1 Et0/2.4 4 200 3218 Y Master 192.168.4.11 192.168.4.1 R2# R2#
3.نوشتن TRACK بدینصورت که در صورت از کار افتادن لینک پشت روتر طرف مقابل ، روتر دیگر بلافاصله MASTER شود.
R1(config)# R1(config)#!TRACK R1(config)# R1(config)#TRACK 1 INT ETH 0/0 LINE-PR R1(config-track)#DELAY DOWN 5 R1(config-track)# R1(config-track)#INT ETH 0/1.2 R1(config-subif)#VRRP 2 TRACK 1 DECREMENT 100 R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#VRRP 4 TRACK 1 DECREMENT 100 R1(config-subif)# R1(config-subif)# R1(config-subif)#EXIT R1(config)#EXIT R1# R1# *Apr 16 10:40:47.421: %SYS-5-CONFIG_I: Configured from console by console R1# R1#SHOW TRACK Track 1 Interface Ethernet0/0 line-protocol Line protocol is Up 3 changes, last change 02:27:28 Delay down 5 secs Tracked by: VRRP Ethernet0/1.2 2 VRRP Ethernet0/1.4 4 R1# R1#
R2(config)# R2(config)#!TRACK R2(config)# R2(config)#TRACK 2 INT ETH 0/0 LINE-PR R2(config-track)#DELAY DOWN 5 R2(config-track)# R2(config-track)#INT ETH 0/2.2 R2(config-subif)#VRRP 2 TRACK 2 DECREMENT 100 R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#VRRP 4 TRACK 2 DECREMENT 100 R2(config-subif)# R2(config-subif)# R2(config-subif)#EXIT R2(config)#EXIT R2# R2#S *Apr 16 10:42:14.599: %SYS-5-CONFIG_I: Configured from console by console R2#SHOW TRACK Track 2 Interface Ethernet0/0 line-protocol Line protocol is Up 3 changes, last change 02:23:37 Delay down 5 secs Tracked by: VRRP Ethernet0/2.2 2 VRRP Ethernet0/2.4 4 R2# R2#
تست کردن مبحث TRACK
R1# R1#SHOW STAN R1#SHOW VRRP BR R1#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/1.2 2 200 3218 Y Master 192.168.2.10 192.168.2.1 Et0/1.4 4 150 3414 Y Backup 192.168.4.11 192.168.4.1 R1# R1# R1# R2# R2# R2#SHOW VRRP BR R2#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/2.2 2 150 3414 Y Backup 192.168.2.10 192.168.2.1 Et0/2.4 4 200 3218 Y Master 192.168.4.11 192.168.4.1 R2# R2# R2# R2(config)#INT ETH 0/0 R2(config-if)#SHU R2(config-if)#SHUtdown R2(config-if)#EXIT R2(config)#EXI R2(config)#EXIT R2# R2# R2# R2#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/2.2 2 50 3414 Y Backup 192.168.2.10 192.168.2.1 Et0/2.4 4 100 3218 Y Backup 192.168.4.10 192.168.4.1 R2# R2# R1# R1# R1#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/1.2 2 200 3218 Y Master 192.168.2.10 192.168.2.1 Et0/1.4 4 150 3414 Y Master 192.168.4.10 192.168.4.1 R1# R1# R1# R2(config)# R2(config)#INT ETH 0/0 R2(config-if)#NO SHU R2(config-if)#NO SHUtdown R2(config-if)# R2(config-if)# R2(config-if)# R2# R2# R2# R2# R2# R2# R2# *Apr 16 10:45:28.751: %TRACKING-5-STATE: 2 interface Et0/0 line-protocol Down->Up *Apr 16 10:45:29.732: %SYS-5-CONFIG_I: Configured from console by console R2# *Apr 16 10:45:30.746: %LINK-3-UPDOWN: Interface Ethernet0/0, changed state to up *Apr 16 10:45:31.493: %VRRP-6-STATECHANGE: Et0/2.4 Grp 4 state Backup -> Master R2# R2# *Apr 16 10:45:31.752: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/0, changed state to up R2# R2# R2# R2#SHOW VRRP BRief Interface Grp Pri Time Own Pre State Master addr Group addr Et0/2.2 2 150 3414 Y Backup 192.168.2.10 192.168.2.1 Et0/2.4 4 200 3218 Y Master 192.168.4.11 192.168.4.1 R2# R2#
نهایتا" قرار شد بین روتر ها AUTHENTICATION از نوع MD5 داشته باشیم
R1(config)# R1(config)# R1(config)#!AUTHENTICATION R1(config)# R1(config)#INT ETH 0/1.2 R1(config-subif)#VRRP 2 AUTHENTICATION MD5 KEY-STRING CISCO R1(config-subif)# R1(config-subif)#INT ETH 0/1.4 R1(config-subif)#VRRP 4 AUTHENTICATION MD5 KEY-STRING CISCO R1(config-subif)# R2(config)# R2(config)#!---------------------------------------- R2(config)#!AUTHENTICATION R2(config)# R2(config)#INT ETH 0/2.2 R2(config-subif)#VRRP 2 AUTHENTICATION MD5 KEY-STRING CISCO R2(config-subif)# R2(config-subif)#INT ETH 0/2.4 R2(config-subif)#VRRP 4 AUTHENTICATION MD5 KEY-STRING CISCO R2(config-subif)# R2(config-subif)#
